VOGEL servo spiral gearboxes are ideal for maximum demands on dynamics. The sturdy and durable power packs are flexible to use and can be installed in any position thanks to a flexible lubricant system. Like all VOGEL spiral bevel gearboxes, they are manufactured using the modern production method of ground circular arc teeth according to Klingelnberg. For customers, this means greater toothing quality and precision as well as even faster delivery times.
Vogel SK [N] / SK
Vogel SKH
![Vogel SK [N] / SK](http://www.eurodex.com/images/stories/com_form2content/p3/f47/vogel-4.jpg "Vogel SK [N] / SK")

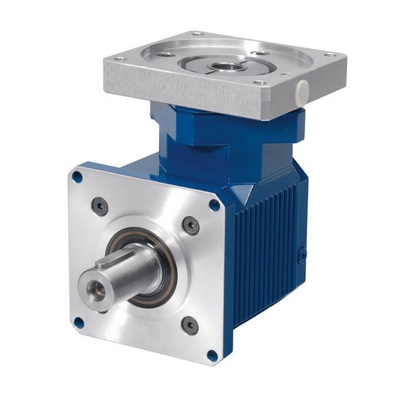

Vogel SK [N] / SK
Angular gearbox with solid shaft with / without key
Ratios: i [-] 3,0 – 10,0
Max. acceleration torque: T2maxzul [Nm] 54 – 217
Nominal torque on output shaft: T2Nzul [Nm] 40 – 150
Max. backlash: j [arcmin] 2 – 5
Max. input speed: N1maxzul [min-1] 6500 – 7500
The operating mode is S5. Please contact us if you intend to use other operating modes.
Vogel SKH
Angular gearbox with hollow shaft with shrink disc
Ratios: i [-] 3,0 – 10,0
Max. acceleration torque: T2maxzul [Nm] 54 – 217
Nominal torque on output shaft: T2Nzul [Nm] 40 – 150
Max. backlash: j [arcmin] 2 – 5
Max. input speed: N1maxzul [min-1] 6500 – 7500
The operating mode is S5. Please contact us if you intend to use other operating modes.
Vogel SKPR
Vogel SKPG
Vogel SKPR
Angular gearbox with solid shaft without key
Ratios: i [-] 12,0 – 100,0
Max. acceleration torque: T2maxzul [Nm] 100 – 950
Nominal torque on output shaft: T2Nzul [Nm] 70 – 550
Max. backlash: j [arcmin] 3 – 5
MMax. input speed: N1maxzul [min-1] 6500 – 7500
The operating mode is S5. Please contact us if you intend to use other operating modes.
Vogel SKPG
Angular gearbox with flanged shaft
Ratios: i [-] 12,0 – 100,0
Max. acceleration torque: T2maxzul [Nm] 100 – 950
Nominal torque on output shaft: T2Nzul [Nm] 70 – 550
Max. backlash: j [arcmin] 3 – 5
Max. input speed: N1maxzul [min-1] 6500 – 7500
The operating mode is S5. Please contact us if you intend to use other operating modes.
